Our CNC Polishing Services

Elevate your parts’ aesthetics and performance with our CNC Polishing services—the gold standard for precision polishing and consistent surface finishes across industries. Leveraging advanced automated polishing technology, we transform metals (stainless steel, titanium), plastics, composites, and glass into flawless components with Ra values as low as 0.02μm.

Whether you need mirror-like medical tools, corrosion-resistant aerospace parts, or sleek consumer goods, our custom solutions blend efficiency, versatility, and uncompromising quality—reducing manual labor and ensuring every part shines.

Get Free Quote

Our CNC Polishing Capabilities

We offer comprehensive polishing capabilities tailored to diverse materials and finish requirements, with a focus on precision machining levels, surface finish quality, and flexibility. Below is a detailed breakdown of our key capacities:

Capability	Specification
Precision Levels	– Surface roughness (Ra): 0.02μm–1.6μm (mirror finish to matte finish)- Dimensional tolerance retention: ±0.001mm (no part distortion)
Tolerance Achievements	– Maintains original part tolerances (meets ISO 2768-1 fine grade)- Uniformity: ±0.05μm Ra variation across the part surface
Maximum Part Size	– Small parts: 0.5mm × 0.5mm × 0.5mm (micro-components like medical needles)- Large parts: 3000mm × 1500mm × 800mm (aerospace panels, automotive body parts)- Weight: Up to 500kg
Material Compatibility	– Metals: Stainless steel, aluminum, titanium, brass, copper, exotic metals (inconel, tantalum)- Non-Metals: Plastics (ABS, polycarbonate), composites, glass, ceramics- Special Materials: High-performance polymers (PEEK), optical glass
Custom Polishing	– Finish types: Mirror (Ra ≤ 0.05μm), satin (Ra 0.1–0.2μm), matte (Ra 0.8–1.6μm), brushed (linear grain)- Complex geometries: Internal cavities, curved surfaces, undercuts (via 5-axis polishing heads)
Surface Finish Quality	– Meets industry standards: ASTM B607 (metal polishing), ISO 8785 (surface roughness)- Specialized finishes: Electropolished (for corrosion resistance), chemically polished (for plastics)
Quality Assurance	– In-line inspection: Laser profilometers (real-time Ra measurement)- Post-polishing: Optical comparators, CMMs (verify dimensions and finish)- Compliance: ISO 9001, AS9100 (aerospace), ISO 13485 (medical)

Whether you need 100 titanium orthopedic implants with a 0.03μm Ra finish or 10,000 aluminum smartphone casings with a satin finish, our capabilities scale to match your project’s needs.

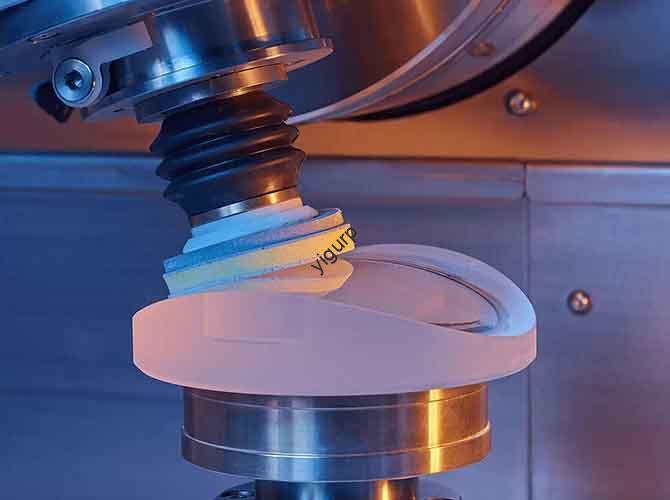

What Is CNC Polishing?

CNC Polishing is an advanced surface-finishing technology that uses computer-controlled machines to smooth, refine, and enhance the surface of materials—replacing manual polishing with automated precision. Unlike manual polishing (which relies on human skill and is prone to inconsistency), it uses pre-programmed tool paths and specialized abrasives to achieve uniform, repeatable results.

The process overview is straightforward: A CNC (Computer Numerical Control) system interprets design files to guide polishing tools (e.g., buffing wheels, abrasive pads) across the material’s surface. The machine adjusts pressure, speed, and abrasive grit based on the material and desired finish—removing micro-imperfections (scratches, tool marks) without altering the part’s dimensions.

To explain “how it works” simply: Imagine a robot armed with a series of fine sandpapers and buffing pads, following a digital map to polish every inch of a part. For a stainless steel medical tool, the CNC machine first uses a coarse abrasive to remove machining marks, then progresses to finer grits to create a mirror finish—all without human error. This blend of automation and precision is what makes CNC Polishing superior to manual methods, especially for complex or high-volume parts.

The CNC Polishing Process (Step-by-Step)

Our step-by-step process is optimized to deliver consistent, high-quality finishes while preserving the part’s original dimensions:

Design and CAD Modeling: We start by reviewing your part’s CAD model and finish requirements (e.g., Ra value, finish type). Our engineers identify critical areas (e.g., bearing surfaces that need ultra-smooth finishes) and select the best polishing technique (mechanical, chemical, or electrochemical) for the material.

CAM Programming: The CAD model is imported into CAM software (Mastercam, SolidWorks CAM) to generate tool paths—mapping the polishing tool’s movement across the part. We program parameters like tool speed (500–3000 RPM), pressure (1–10 N), and abrasive grit sequence (coarse → medium → fine) to achieve the desired finish.

Setup and Calibration: The part is secured in custom fixture design (e.g., vacuum chucks for thin parts, soft jaws for delicate plastics) to prevent movement. We calibrate the polishing tool’s pressure and alignment using laser sensors—ensuring it follows the tool path without altering the part’s dimensions. Abrasives and coolant systems (for heat-sensitive materials) are loaded.

Polishing Execution: The CNC machine runs the program, progressing through the abrasive sequence. For example:

Mechanical Polishing: Uses rotating buffing wheels with abrasive compounds (alumina for metals, diamond for ceramics) to remove imperfections.

Electrochemical Polishing: Applies an electric current and chemical solution to dissolve surface imperfections (ideal for stainless steel medical parts).

Vibratory Polishing: Tumbles small parts with abrasive media (ceramic beads) for uniform finishing (great for high-volume small components like brass connectors).

Post-Polishing Inspection: Parts undergo rigorous quality control—we measure surface roughness with a profilometer, check for uniformity with an optical comparator, and verify dimensions with a CMM. Parts that meet the Ra requirement move to final packaging; those that don’t are reworked with adjusted parameters.

Materials We Work With

CNC Polishing works with almost every material, but the technique and abrasives vary based on the material’s hardness and properties. Below is a breakdown of our supported materials, recommended polishing techniques, and ideal finishes:

Material Category	Examples	Key Properties	Recommended Polishing Technique	Ideal Finish (Ra Value)	Common Applications
Metals	Stainless Steel	Corrosion-resistant, hard	Electrochemical polishing, mechanical	0.02μm–0.1μm (mirror)	Medical tools, food processing equipment
	Aluminum	Lightweight, soft, prone to oxidation	Mechanical polishing (with oxide inhibitors)	0.05μm–0.2μm (satin)	Automotive trim, electronics casings
	Titanium	High strength, biocompatible, hard	Mechanical polishing (diamond abrasives)	0.03μm–0.1μm (mirror)	Orthopedic implants, aerospace components
	Brass	Malleable, conductive, tarnishes easily	Mechanical polishing (buffing wheels)	0.05μm–0.1μm (mirror)	Electrical connectors, decorative parts
	Copper	Soft, conductive, prone to oxidation	Chemical polishing (acid-based)	0.05μm–0.2μm (satin)	Heat exchangers, musical instruments
Non-Metals	Plastics (ABS/Polycarbonate)	Lightweight, soft, prone to melting	Mechanical polishing (fine abrasive pads)	0.1μm–0.8μm (matte)	Consumer goods casings, prototypes
	Composites	Layered structure, abrasive-sensitive	Mechanical polishing (low-pressure, fine grit)	0.2μm–1.6μm (matte)	Aerospace panels, racing car parts
	Glass	Hard, brittle, scratch-prone	Mechanical polishing (diamond abrasives)	0.02μm–0.05μm (optical)	Optical lenses, display screens
	Ceramics	Hard, heat-resistant, brittle	Mechanical polishing (diamond pads)	0.02μm–0.1μm (mirror)	Medical implants, industrial valves
Special Materials	Exotic Metals (Inconel)	Heat-resistant, hard	Mechanical polishing (ceramic abrasives)	0.1μm–0.3μm (satin)	Aerospace engine parts
	High-Performance Polymers (PEEK)	Heat-resistant, chemical-resistant	Mechanical polishing (non-abrasive pads)	0.2μm–0.8μm (matte)	Medical device casings, industrial seals

Inquiry A project

Surface Treatment & Finishing Options

CNC Polishing is often paired with complementary surface treatment techniques to enhance durability, aesthetics, or functionality. Below are our most popular finishing options, along with their benefits and ideal uses:

Finishing Option	Process Description	Key Benefits	Material Compatibility	Cost (per sq. meter, avg.)	Best For
Mechanical Polishing	Uses rotating abrasive tools (buffing wheels, pads) to remove imperfections	Fast, cost-effective, customizable finish	All metals, plastics, composites	50–150	High-volume parts (automotive trim)
Electrochemical Polishing	Uses electric current + chemical solution to dissolve surface flaws	Corrosion-resistant, uniform finish, no tool marks	Stainless steel, titanium, brass	80–200	Medical tools, food-grade parts
Chemical Polishing	Uses acid/base solutions to etch away surface imperfections	No contact (ideal for delicate parts), fast	Copper, brass, plastics	40–120	Small, complex plastic parts
Vibratory Polishing	Tumbles parts with abrasive media (ceramic beads, plastic chips)	Uniform finish for small parts, low labor	Small metals (brass pins), plastics	20–80	Electronics connectors, jewelry
Buffing	Uses soft cloth wheels + polishing compounds (wax, rouge) to create shine	Mirror finish, enhanced aesthetics	Stainless steel, brass, aluminum	60–180	Decorative parts, consumer goods
Brushed Finishing	Uses linear abrasive pads to create parallel grain patterns	Hides fingerprints, matte aesthetic	Aluminum, stainless steel	45–130	Appliance panels, smartphone casings
Coating Removal	Uses fine abrasives to strip old coatings (paint, plating) before re-polishing	Prepares parts for re-finishing, cost-saving	All metals, plastics	30–100	Refurbished parts (industrial machinery)

For example, we use electrochemical polishing for stainless steel medical tools (to ensure corrosion resistance) and brushed finishing for aluminum smartphone casings (to hide fingerprints while maintaining a sleek look).

Tolerances & Quality Assurance

Tolerances for CNC Polishing focus on two key metrics: surface roughness (Ra value) and dimensional stability (ensuring polishing doesn’t alter the part’s original dimensions). Our quality control processes are designed to meet strict industry standards:

Material	Target Ra Range	Ra Uniformity Tolerance	Dimensional Tolerance Retention	Accuracy Standard Used	Measurement Technique
Stainless Steel	0.02μm–0.1μm	±0.05μm	±0.001mm	ASTM B607, ISO 8785	Laser Profilometer + CMM
Aluminum	0.05μm–0.2μm	±0.08μm	±0.002mm	ISO 8785, AMS 2750	Profilometer + Optical Comparator
Titanium	0.03μm–0.1μm	±0.06μm	±0.001mm	ISO 8785, AMS 4928	Laser Profilometer + CMM
Glass	0.02μm–0.05μm	±0.03μm	±0.0005mm	ISO 10110, ASTM C1036	Optical Profilometer + Interferometer
ABS Plastic	0.1μm–0.8μm	±0.1μm	±0.005mm	ISO 8785, ASTM D638	Profilometer + Micrometer

Our quality control processes include:

Pre-polishing: Inspecting parts for initial surface condition (e.g., machining marks, scratches) and verifying dimensions.

In-process: Real-time Ra measurement with laser profilometers (adjusting tool pressure/speed if Ra deviates from target).

Post-polishing: 100% inspection for critical parts (medical, aerospace); statistical sampling (5–10%) for high-volume parts. We also conduct adhesion tests (for coated parts) and corrosion tests (for metals).

Documentation: Providing a finish report with every order, including Ra values, measurement locations, and compliance certificates.

Key Advantages of CNC Polishing

Compared to manual polishing or other finishing methods, CNC Polishing offers unmatched benefits for consistency, efficiency, and quality:

High Precision: Achieves surface roughness as low as 0.02μm—critical for parts like optical lenses (where even tiny imperfections affect performance) or medical implants (where smooth surfaces reduce tissue irritation).

Consistency and Repeatability: CNC programming ensures every part has the same finish—no variation from part to part (unlike manual polishing, where results depend on the operator’s skill).

Complex Geometries: 5-axis CNC polishing heads reach internal cavities, curved surfaces, and undercuts—finishing areas manual methods can’t access (e.g., the inside of a titanium knee implant).

Reduced Setup Time: CAM programming and automated tool changes cut setup time by 60–80% compared to manual polishing—ideal for high-volume runs (e.g., 10,000 aluminum casings).

Increased Efficiency: CNC machines run 24/7 with minimal supervision—producing 3–5x more parts per hour than manual polishers.

Versatility: Works with almost every material (metals, plastics, glass, composites) and can create any finish (mirror, satin, brushed).

Cost-Effectiveness: While upfront costs are higher than manual polishing, reduced labor costs (no need for skilled operators) and lower rework rates (fewer inconsistent parts) save money long-term—especially for high-volume orders.

Improved Surface Finish: Removes micro-imperfections (machining marks, scratches) that manual polishing misses—enhancing aesthetics and functionality (e.g., smooth surfaces reduce friction in moving parts).

Enhanced Aesthetics: Creates uniform, professional finishes that boost product value—critical for consumer goods (e.g., smartphones, jewelry) and decorative parts.

Reduced Manual Labor: Eliminates repetitive, labor-intensive manual polishing—reducing worker fatigue and improving workplace safety.

Industry Applications

CNC Polishing is used across industries where surface finish impacts performance, aesthetics, or compliance. Here are its most common applications:

Industry	Common Uses	Key Benefit of CNC Polishing
Aerospace	Titanium engine components, aluminum fuselage panels, stainless steel fuel lines	Corrosion resistance + dimensional stability
Automotive	Aluminum trim, stainless steel exhaust tips, plastic interior panels	Aesthetics + consistency for high-volume production
Medical Devices	Stainless steel surgical tools, titanium orthopedic implants, plastic device casings	Smooth surfaces (reduces tissue irritation) + compliance
Industrial Manufacturing	Steel machinery parts, ceramic valves, composite conveyor belts	Reduced friction + durability
Electronics	Aluminum heat sinks, brass connectors, plastic smartphone casings	Aesthetics + improved heat dissipation (smooth surfaces)
Defense	Titanium weapon components, stainless steel vehicle armor parts	Corrosion resistance + durability in harsh environments

RFQ New Parts

Case Studies: CNC Polishing Success Stories

Our CNC Polishing services have solved finish challenges for clients across medical, aerospace, and consumer goods industries. Below are two successful projects showcasing our expertise:

Case Study 1: Medical Device Company (Stainless Steel Surgical Scissors)

Challenge: The client needed 50,000 stainless steel surgical scissors monthly—requiring a mirror finish (Ra ≤ 0.05μm) for corrosion resistance and easy sterilization. Their previous supplier used manual polishing, which caused 12% of scissors to have inconsistent finishes (some too rough, some with scratches) and failed FDA compliance checks. Lead time was 4 weeks, delaying product launches.

Solution: We used electrochemical polishing (ECP)—the scissors were mounted on a custom fixture and submerged in a phosphoric acid electrolyte. We programmed the ECP system to apply 12V current for 3 minutes (optimized for stainless steel), then rinsed and passivated the scissors to enhance corrosion resistance. We added in-line laser profilometers to inspect Ra values in real time, rejecting parts with Ra > 0.05μm.

Results:

Finish consistency improved from 88% to 99.8%—only 100 scissors failed per month (vs. 6,000 previously).

The scissors passed FDA compliance (corrosion resistance test: 500+ hours in salt spray).

Lead time shortened from 4 weeks to 10 days—helping the client meet launch deadlines.

Client Testimonial: “CNC ECP transformed our scissors’ quality. The mirror finish is perfect every time, and the FDA approval was seamless. We’ve expanded our order to include hemostats and forceps.” — Maria L., Medical Device Production Manager.

Before and After: Manual polished scissors had visible scratches and uneven shine; ECP scissors featured a uniform mirror finish that resisted rust and simplified sterilization.

FAQ

How do I choose the right CNC polishing technique for my part?

The choice depends on three factors: material, finish requirement, and geometry:
Material: Use ECP for stainless steel/titanium (corrosion resistance); chemical polishing for copper/plastics (fast, no contact); mechanical polishing for aluminum/steel (customizable finishes).
Finish: Use mechanical polishing for brushed/matte finishes; ECP for mirror finishes; vibratory polishing for uniform micro-parts.
Geometry: Use 5-axis mechanical polishing for curved/complex parts; ECP for parts with internal cavities; vibratory polishing for small, simple parts (pins, needles).
Our team offers free consultations—send us your part’s CAD model and finish specs, and we’ll recommend the best technique.

Can CNC Polishing maintain my part’s original dimensions?

Yes—CNC Polishing is designed to remove only surface material (typically 5–20μm) without altering the part’s core dimensions. We:
Use low-pressure polishing tools (1–5 N) to avoid material over-removal.
Calibrate machines with laser sensors to track tool depth (ensuring it stays within the surface layer).
Inspect dimensions pre- and post-polishing with CMMs—guaranteeing tolerance retention (±0.001mm for metals, ±0.005mm for plastics).
For critical parts (e.g., medical implants), we provide a dimensional report showing no changes after polishing.

What’s the difference between CNC Polishing and CNC Grinding?

The key difference is purpose and material removal depth:
CNC Grinding: Removes 50–500μm of material to correct dimensional errors (e.g., flattening a warped steel plate) or prepare surfaces for polishing. It uses coarse abrasives (30–240 grit) and creates a rough finish (Ra 1.6–6.3μm).
CNC Polishing: Removes 5–20μm of material to enhance surface quality (aesthetics, functionality) without changing dimensions. It uses fine abrasives (400–10,000 grit) and creates smooth finishes (Ra 0.02–1.6μm).
Grinding is a “correction” process; polishing is a “refinement” process—we often use both (grinding first, then polishing) for parts needing both dimensional accuracy and a high-quality finish.
